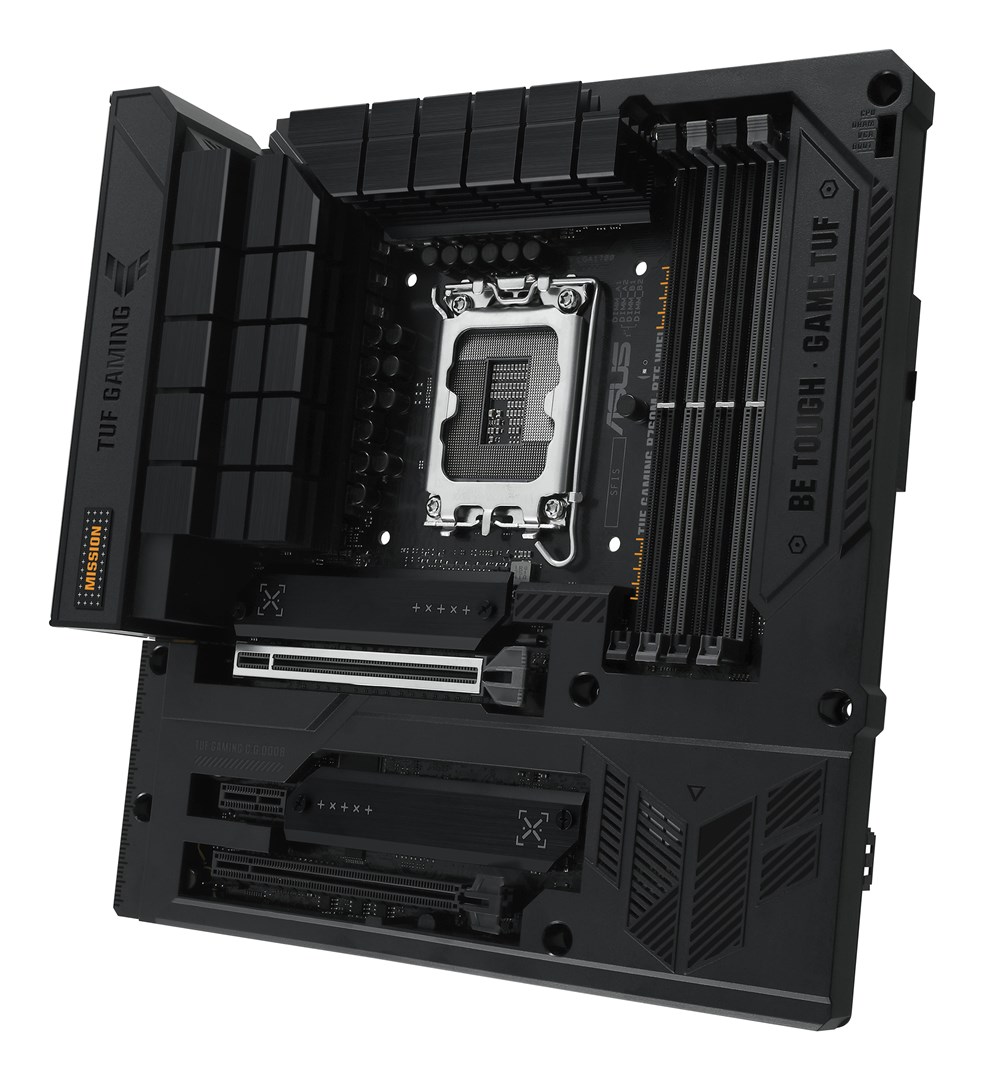

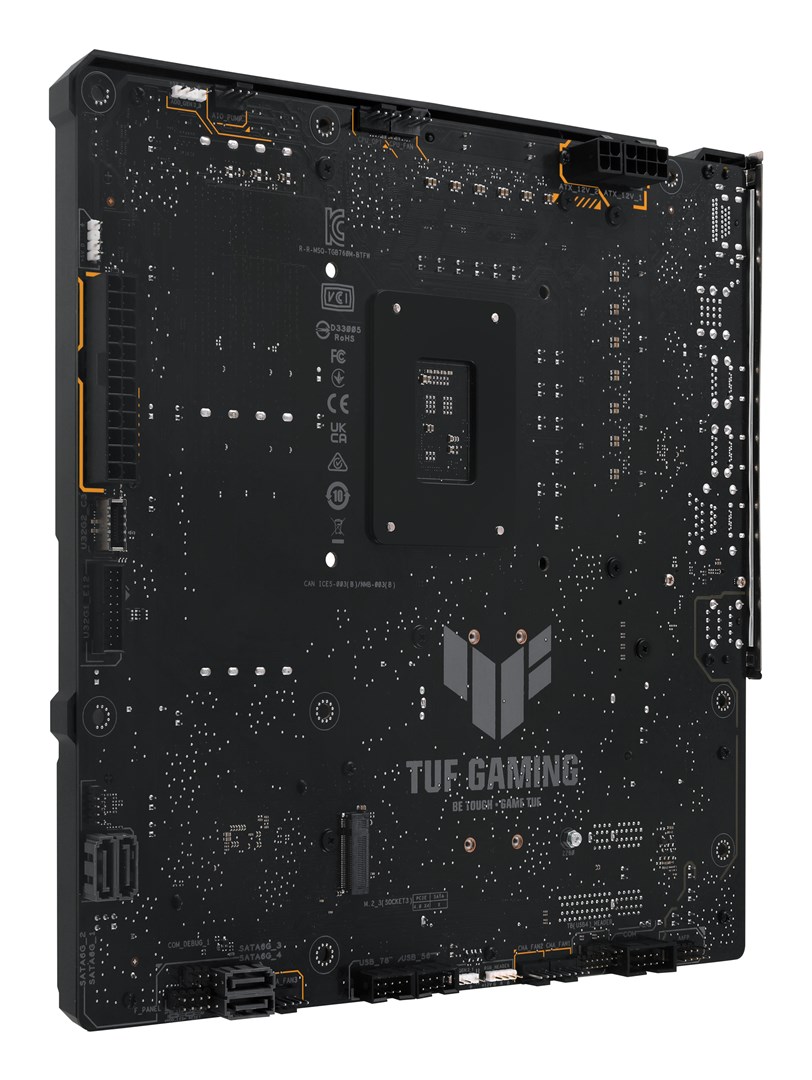

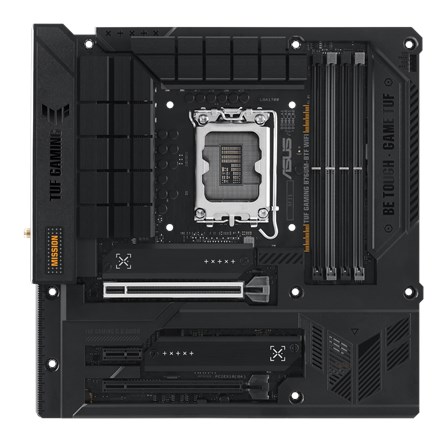

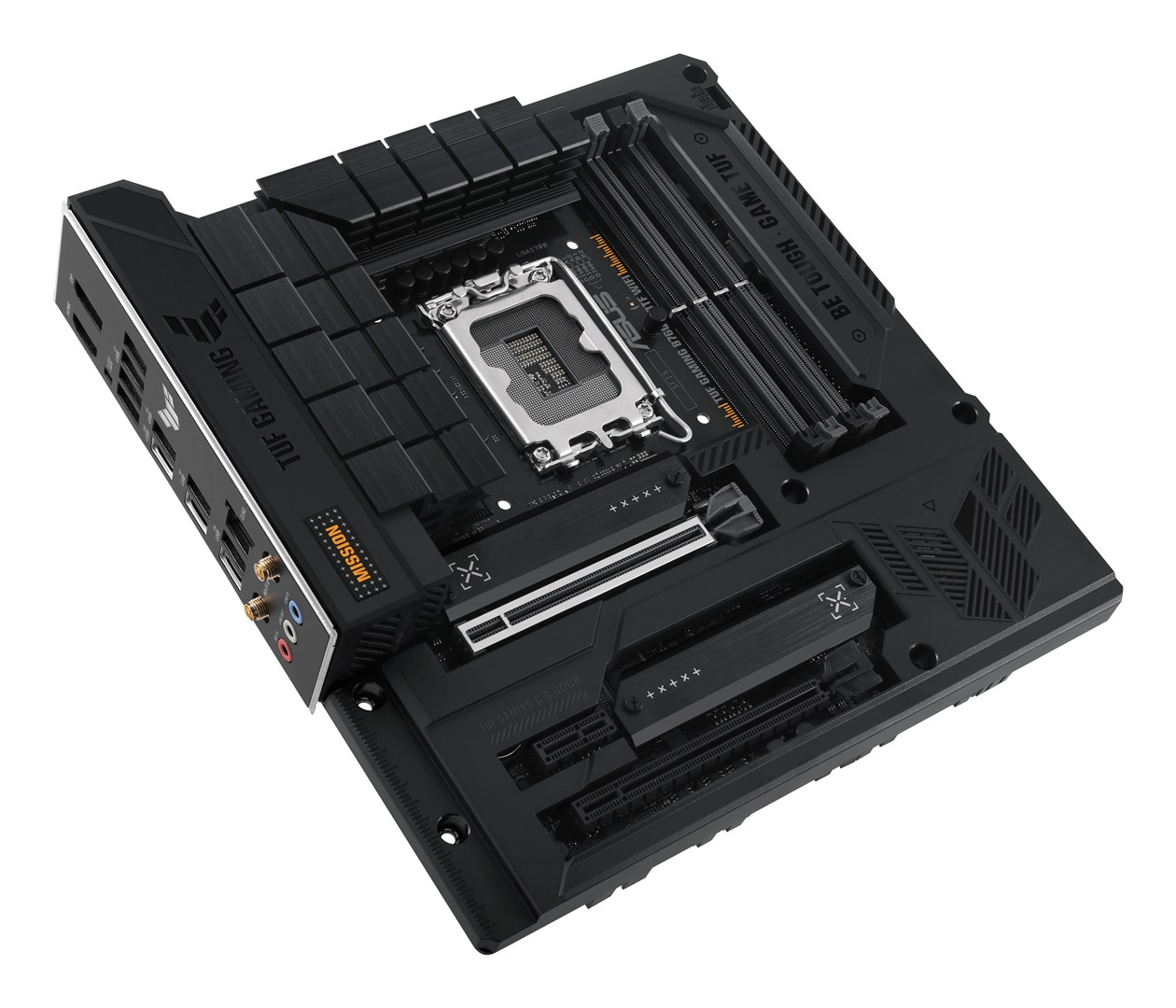

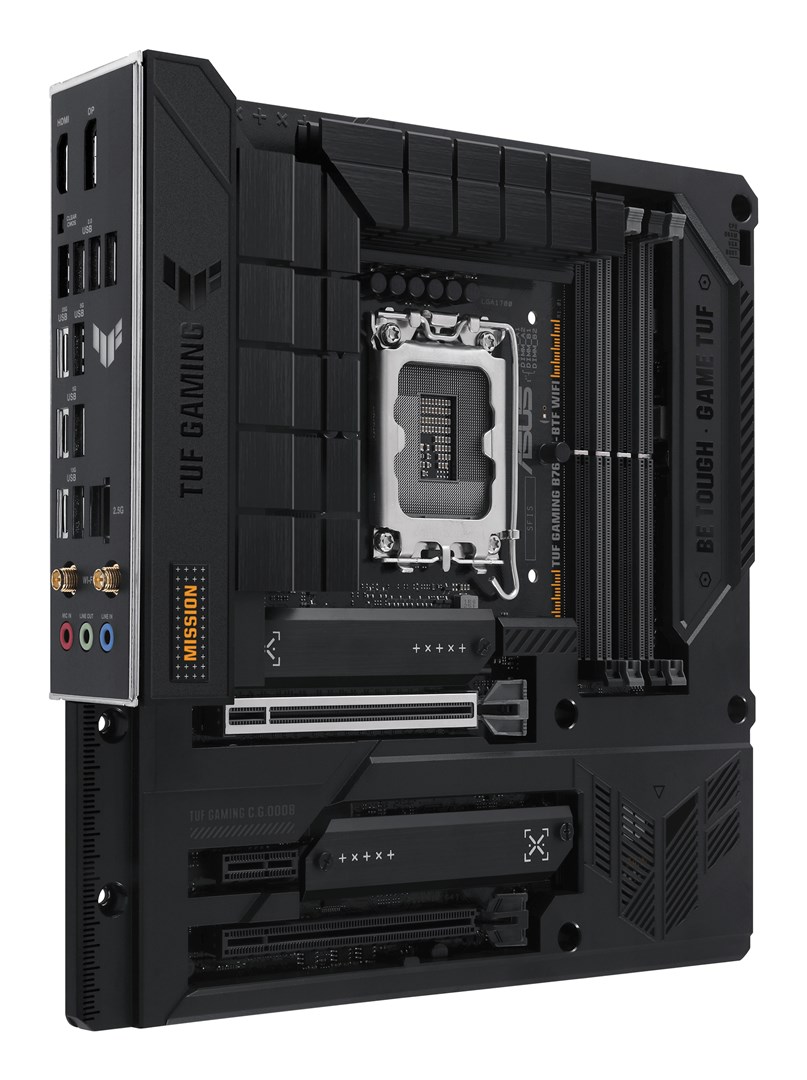

ASUS TUF GAMING B760M-BTF WIFI Intel B760 LGA 1700 micro ATX
Zoek je iets dat gewoon werkt? Dat is de ASUS TUF GAMING B760M-BTF WIFI Intel B760 LGA 1700 micro ATX. Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold. PC micro ATX Intel B760 7.1 kanalen. DDR5-SDRAM 4 DIMM Maximum intern geheugen: 192 GB. HDD & SSD M.2, SATA III RAID support Aantal storage drives ondersteund: 7. Wat je krijgt: processormerk Intel, voeding ATX, diepte 244 mm, breedte 244 mm, Bluetooth-versie 5.2 en wifi-standaard 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax). Tegelijk is het een fijne aanvulling op je interieur, en ontworpen om je het leven makkelijker te maken. Ook is dit een doordachte upgrade van je huidige spullen, en een betrouwbare metgezel voor thuis, op kantoor of onderweg. En het is meteen gemaakt voor wie zonder gedoe wil multitasken. Tegelijk is het scherp geprijsd en direct leverbaar. Bestel nu en geniet er morgen al van.
- Processorfabrikant Intel
- Compatibele processors Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Ondersteunde geheugen types DDR5-SDRAM
- Maximum intern geheugen 192 GB
- Geheugen kanaal Dubbelkanaals
- Niet gebufferd geheugen Ja
Omschrijving
Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold | PC micro ATX Intel B760 7.1 kanalen | DDR5-SDRAM 4 DIMM Maximum intern geheugen: 192 GB | HDD & SSD M.2, SATA III RAID support Aantal storage drives ondersteund: 7 | BIOS type: UEFI AMI 128 Mbit Clear CMOS knop | 2.5 Gigabit Ethernet Wifi Wi-Fi 6 (802.11ax) Bluetooth 5.2
Specificaties
- Processorfabrikant
- Intel
- Compatibele processors
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Ondersteunde geheugen types
- DDR5-SDRAM
- Maximum intern geheugen
- 192 GB
- Geheugen kanaal
- Dubbelkanaals
- Niet gebufferd geheugen
- Ja
- Soorten RAID
- 0, 1, 5, 10
- USB 2.0 aansluitingen
- 2
- Aansluiting voor CPU koeler
- Ja
- COM aansluitingen
- 1
- 12V vermogen-connector
- Ja
- Aantal USB 2.0-poorten
- 4
- HDMI versie
- 2.1
- DisplayPort versie
- 1.4
- Lijningang
- Ja
- WiFi-AP antenna jack
- 1
- Ethernet LAN
- Ja
- Wifi-standaard
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Ja
- Component voor
- PC
- Moederbord chipset familie
- Intel
- Audio-uitgangskanalen
- 7.1 kanalen
- Type stroombron
- ATX
- BIOS type
- UEFI AMI
- Clear CMOS knop
- Ja
- Diepte
- 244 mm
- Gebruiksaanwijzing
- Ja
- Processor socket
- LGA 1700
- Supported processor sockets
- LGA 1700
- Aantal geheugenslots
- 4
- Geheugen slots type
- DIMM
- ECC-compatibiliteit
- Niet-ECC
- RAID support
- Ja
- Aantal SATA III connectors
- 4
- EPS power connector (8-pin)
- Ja
- Thunderbolt-headers
- 1
- RGB LED-aansluitrail
- Ja
- Aantal HDMI-poorten
- 1
- Aantal DisplayPorts
- 1
- Hoofdtelefoonuitgangen
- 1
- Microfoon, line-in ingang
- Ja
- Wifi
- Ja
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi-standaarden
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth-versie
- 5.2
- Moederbord form factor
- micro ATX
- Chipset moederbord
- Intel B760
- Type koeling
- Passief
- Ondersteunt Windows
- Windows 11, Windows 10
- Aantal M.2 (M) slots
- 3
- Grootte BIOS-geheugen
- 128 Mbit
- Breedte
- 244 mm
- Meegeleverde kabels
- SATA
